Description
◆Fashionable design and light weight ◆Top advanced IMS technology ◆Extremely high sensitivity: can reach Nanogram level ◆5inch HD touch screen ◆Fast identify speed and accurate result
◆ Fashionable design and light weight
◆ Top advanced IMS technology
◆ Extremely high sensitivity: can reach Nanogram level
◆ 5inch HD touch screen
◆ Fast identify speed and accurate result
◆ Battery backup time: more than 12 hours

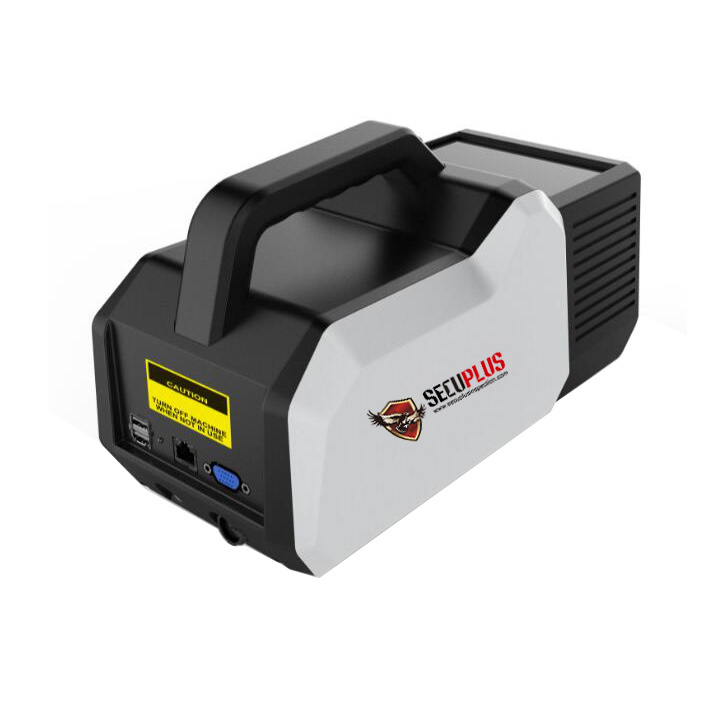

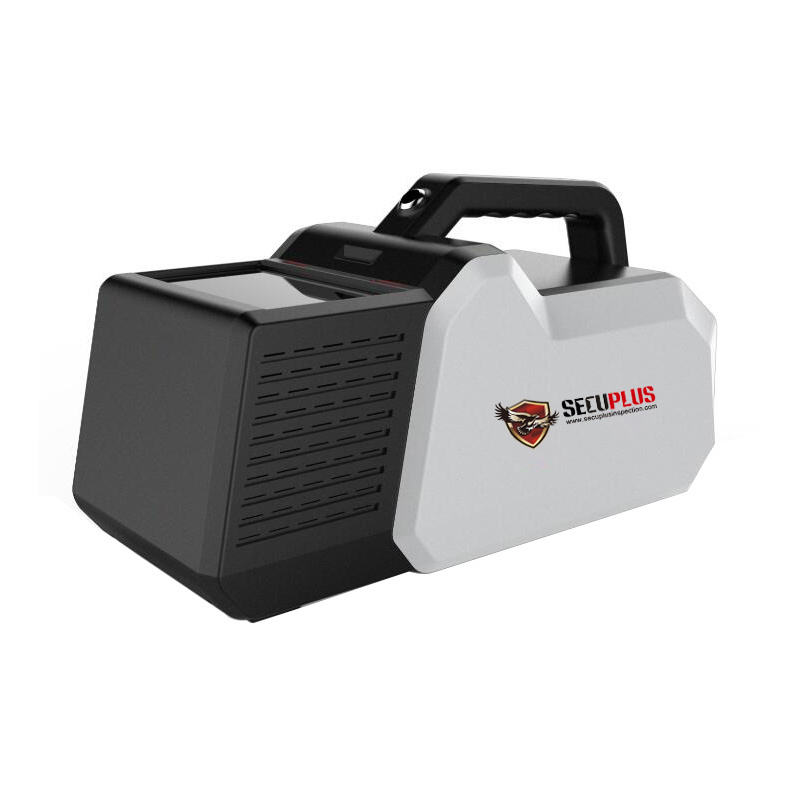

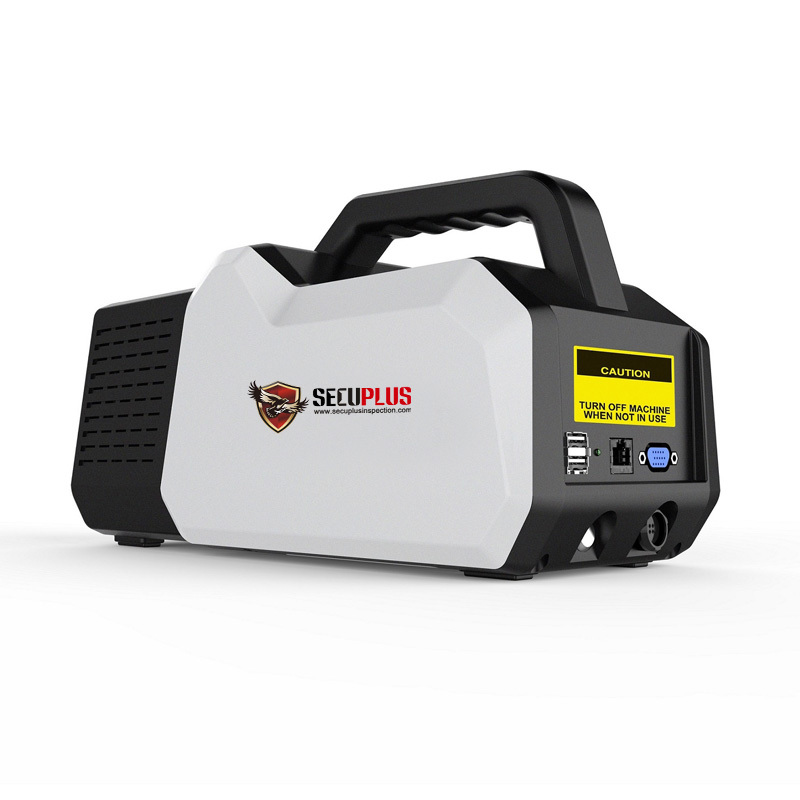

SPE9000 Portable explosives drug detector is developed and produced by our company. Based on the most advanced ion mobility spectrometry (IMS) technology in the world, this product can quickly and accurately detect and determine the types of trace explosives and drugs.
It has been widely used in subway, railway, public security, border police, government Units, postal logistics and other key security zone, the human body clothing, luggage, drugs left on the surface of the goods, explosives and other prohibited items, suspicious objects can be quickly detected.
Technical specification:
Explosives identify
A variety of military , civilian , and homemade explosives:
Black powder, AN, TNT, PETN, RDX, nitroglycerin , Aktobe today, Te Quer, dinitrotoluene (DNT), C4, Semtex, TATP etc.
Drugs identify
Cocaine hydrochloride, Heroin hydrochloride, Tetrahydrocannabinol, Methamphetamine, Ketamine hydrochloride (K powder), Morphine hydrochloride; Add new samples if necessary,
Sampling
Test strip wipe sampling, or Trace particle adsorption(optional)
Databases
open to user, can add new type explosive
Alarm way
Voice + display information, accurate analysis of explosives or drugs, and can display the name
Power display
Graphical display battery condition
Self-diagnosis function
Built-in diagnostic program, Power-on self-test
Sensitivity
Mix: Nanogram explosives, even pictogram sulfur
Password protection
Can be set authorized person only
Sensitivity limit
100 Nanogram TNT
Analysis speed
＜ 5 seconds
Warm-up time
≤ 10 minutes
False alarm rate
≤ 1%
Detection rate:
≥ 99%
Display
5-inch HD touch screen
Standby time
＞5hours
Consumption
< 300W Power 220V AC 50-60Hz / Lithium battery Power Adapter Input 220V / AC 50-60Hz; Output 16V / DC Operating temperature -15°C ～ 50°C Relative humidity 99% Highlights and advantages ◆ Fashionable design, compact and easy to carry ◆ With positioning function, real-time display of map location ◆ Human-machine interface is simple and easy to understand ◆ Rapid detection without waiting ◆ Supports remote operation ◆ Support data connection and export of multi-platform system ◆ Test results can be compared to print, convenient and quick ◆ Can identify common explosives, drugs, etc. ◆ Data open to user, can add new explosive and new drugs ◆ Dipstick can be reused ◆ Unlimited storage, USB port to output the data, ◆ Light weight: less than 3kg ◆ Size: 338mm(L)*148mm(W)*175mm(H)
