Description

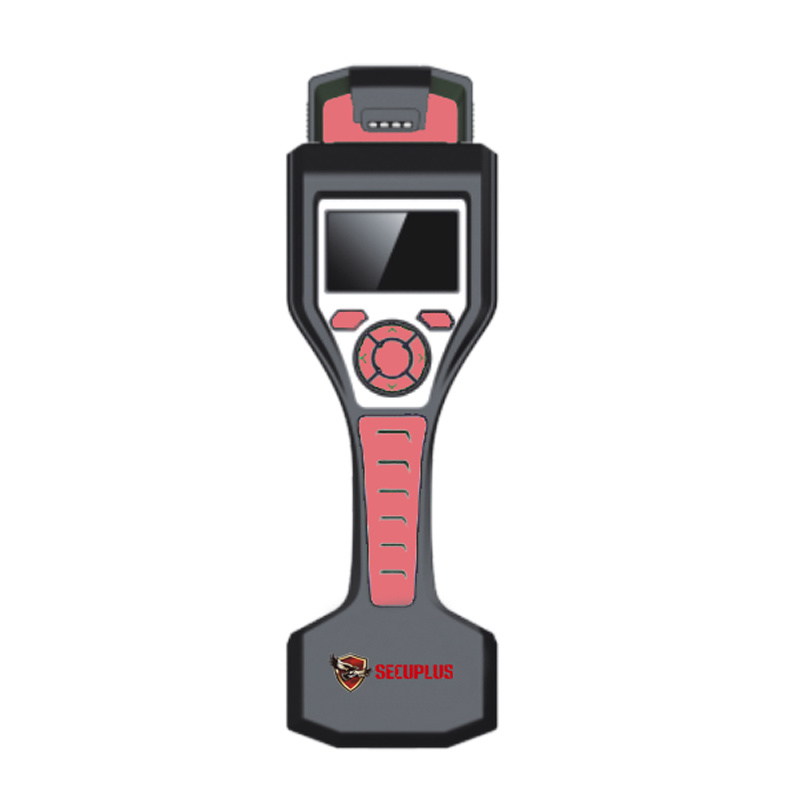

SPE8000 Portable Explosives Trace Detector
Secuplus SPE-8000 is the lightest and most sensitive handheld explosives trace detector in its class. Its unique fluorescent detection technology identifies military, conventional, homemade, and liquid explosive threats by class on surfaces (particulate) and in bottles (vapor). . It starts from cold in three minutes and has a battery that lasts up to eight hours. With clear-down measured in seconds, operators spend more time sampling and less time waiting.SPE-8000 expedites on-site decision making with ten-second threat reporting via intuitive, go/no-go alarms. Training can be completed in 30 minutes, further minimizing the impact on day-to-day operations and costs.
Most Verstile Handheld Explosives Trace detection technology for a wide range of threats
Multi-channel fluorescence technology; no radioactive source
Detects Military, Conventional, Homemade and Liquid Explosives
Nanogram level Sensitivity
Particle and Vapor detection modes
Rugged and Portable Designed to be adapted to many mission types
Lightweight and ergonomic
IP54 rated for dust ingress and water resistance
Mil-Std 810G, shock, 1-m drop tested
Long-lasting, user replaceable battery
5 minute start-up time, 10 second results, clear down within seconds
Visible, Audible and Vibrational Alerts, Sunlight readable display
Broad, class-based identification
On device video training
General Specification :
Technology
multi-channel fluorescence technology; no radio-active source
Sampling & Analysis
Sample Introduction
Direct vapor for bottled liquids or sampling swipes for surfaces
Sample Phase
Vapor and trace particulate
Threats
Detects military, conventional, homemade, and liquid explosives
Sampling & Analysis
Analysis ≤10 seconds with real-time detection capability
System Interface
Alerts
Visible, audible, and haptic (vibration) alerts;bluetooth headset (option)
Localization
Language translation available worldwide
Display
3 inch IPS screen
Communication
USB; optional embedded wireless; Windows®based software
Data Storage
>200000 continuous data logging
Data Management
On-device report generation; export to mass storage
User Levels
Operator and Administrator
Power
Input Voltage
100-240 VAC ; 50/60Hz, 2A
Battery Specs
Two rechargeable Li-ion batteries (swappable and up to 8-hr battery life);
Power comsuption
30W
Startup Time
<3 minutes from cold; Self cleaning time <10 seconds Sensitivity <0.1ng False alarm <1% Environmental Operating Temperature -30 to 50 °C Operating Humidity 5% to 95% non-condensing Storage Temperature -30 to 50 °C Physical Features Dimensions (L x W x H) 14.5 x 4.5 x 2.8 in (276 x120 x 151mm) - with heater 14.5 x 4.5 x 2.8 in (276 x120 x 151mm) - without heater Weight 1.1 Kg 0.9kgs without heater Explosives identify Black Powder, AN, TNT, DNT,MNT, HMX, NHS, BTF, CL20, DNTF, DNTF, NQ, AT, TATP, Tetry, PETN, Gun Power, NG, RDX, fireworks, C4 etc
