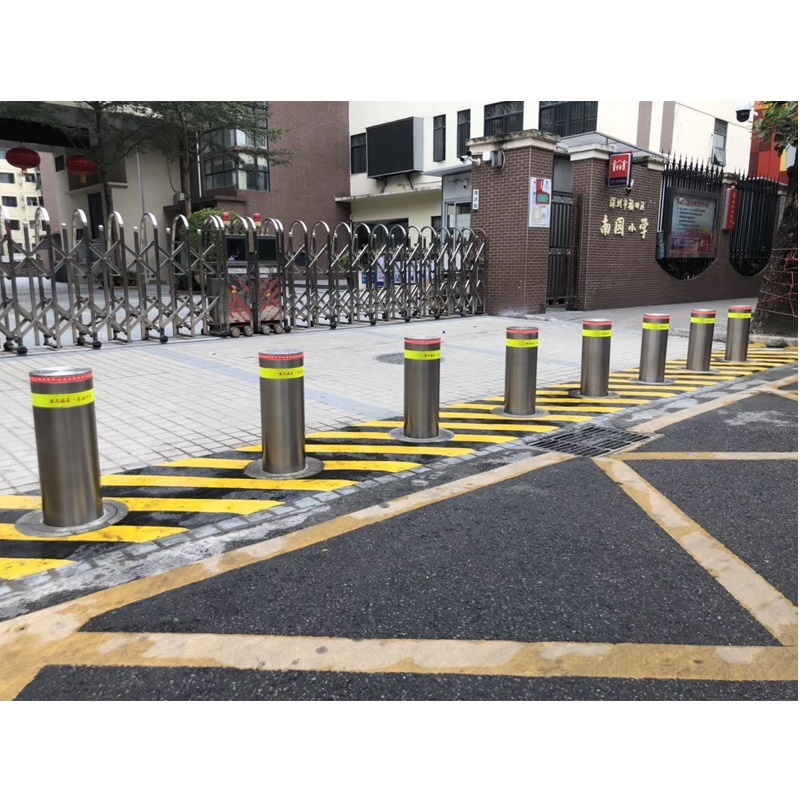

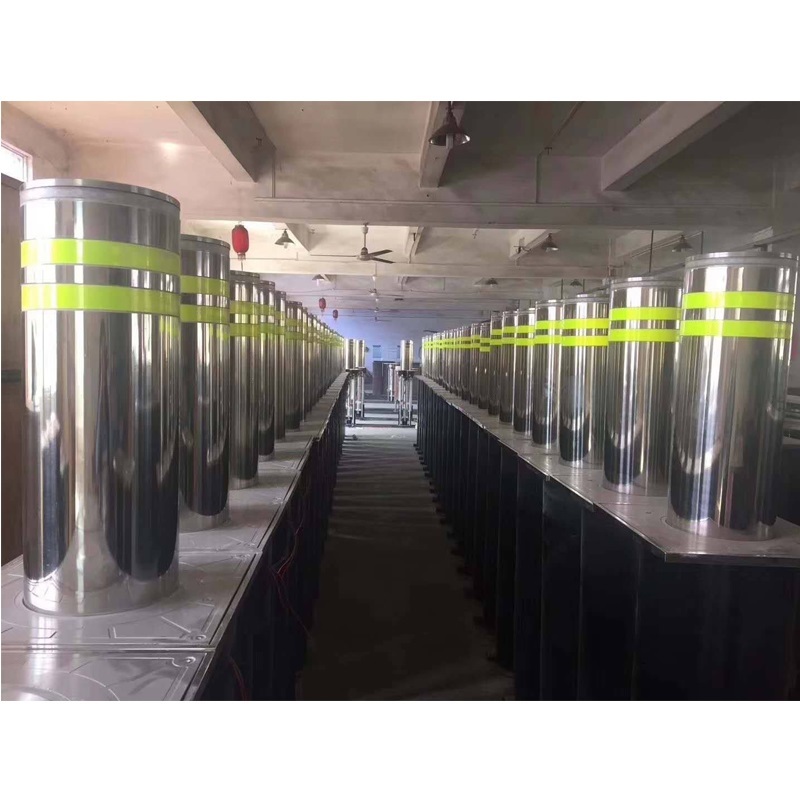

SPB-219Y SECUPLUS Bollard
Highlight:
Easy installation;
Stop unauthorized vehicle intrusion;
Effective solution to vehicle attack;
Additional manual hand pumps facility, in case power failure;
Integrated temperature control device;
Able to prevent high tonnage vehicles at high speeds;
Design for high security and high traffic applications;
Connection to existing barriers, Vehicle Scanning systems, etc;(Optional）
Control multi systems through one workstation (Optional)
Specifications:
Drive power: Hydraulic as standard (Optional: Pneumatic/ Electric)
Material: 304 Stainlessness Steel at 8mm thick
Bollard diameter: 219mm / 273mm (option)
Surface: anti-corrosion painting & reflective film
Up/Down response time: 1-6 seconds
Weatherproof: IP68
Impact: 12K
In ground depth: 1200mm
Communication: RS485, within 1200mm.
Loading capacity: 60T
Output power: 24V
Operating voltage: 380V three-phase (control voltage 24V)
Operating Temperature: -25℃ to 65℃
Storage temperature: -40℃ to +70℃
Service Life: 10 years
Application:
Prisons, Military Checkpoints, Boarder, Airports, Seaports, Embassies, Bank, Government buildings, Nuclear power plants, etc
