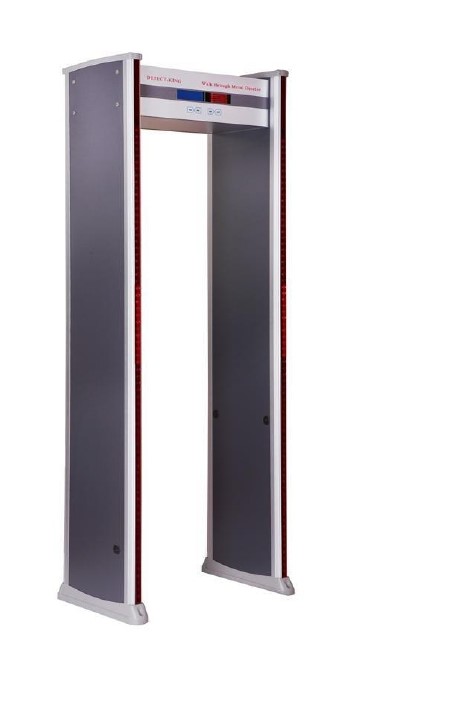

Archway

Description

Electrical current: AC100V~240V 50/60Hz
 Power: 15W
 Work environment: -20℃~+45℃
 Gross Weight: 75kg
 Outer frame: 2220mm (h) x 820mm (w) X 500mm (d)
 Inner frame: 2000mm (h) X 700mm (w) X 500mm (d)
Features:
 Operation way: keyboard and remote control (both)
 LCD friendly operation interface for user
 Four LED light bars on both door panels: gives
alarm corresponding to the height or human body.
 6 Pinpoint zones to precisely identify multiple target
locations from head to toe.
 Sensitivity adjustable from Level 0 to300 High: Can
detect a clip Low: Detect big metal articles such as:
knife, gun, and copper, aluminums, zinc (more than
150g), ignoring metal in belt button, shoes.
 Shock proof to avoid false alarm
 Sound and light alarm
 Intelligent traffic and alarm counters that calculate
traffic flow and resultant alarms.
 Tamper-Proof: operate program is protected by
password.
 Adjustable operating frequencies—eliminate the
potential effects from X-ray units, radios and other
electrical interference sources.
 Mix distance between two Walk-thru: 0.3 meters at
low sensitivity, 0.5 meters at high sensitivity
 Harmless to pregnant woman and heart pacemaker
 Mix distance between two Walk-thru: 0.3 meters at
low sensitivity, 0.5 meters at high sensitivity
 Harmless to pregnant woman and heart pacemaker
 Connect with computer, camera, turnstile, etc
(optional)
